    Gas ball valves | HUTIRA

    Gas ball valves

    Ball valves with threaded connection for use for natural gas. They are used to completely close or open the gas flow. Designed for smaller installations.

    Technical parameters

    Construction properties

    Working temperature: -20°C to +60°C
    Standard: EN 331

    Design variants

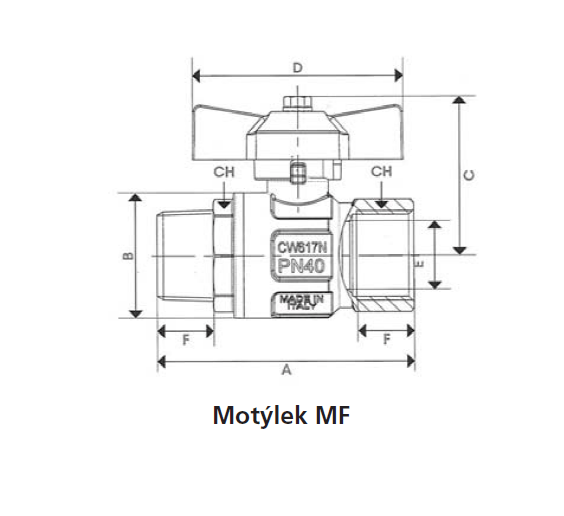

    Bow tie MF

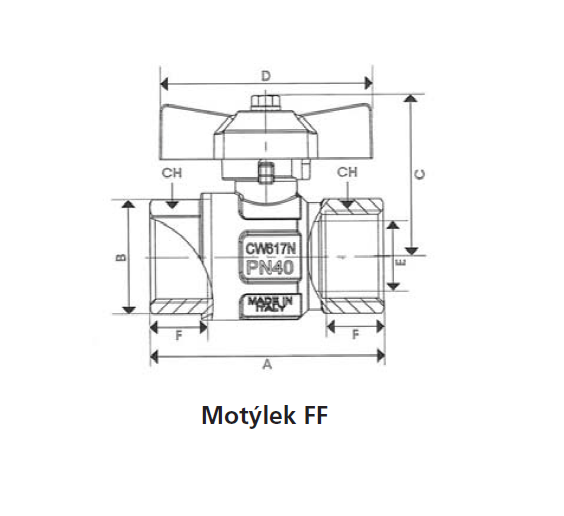

    Bow tie FF

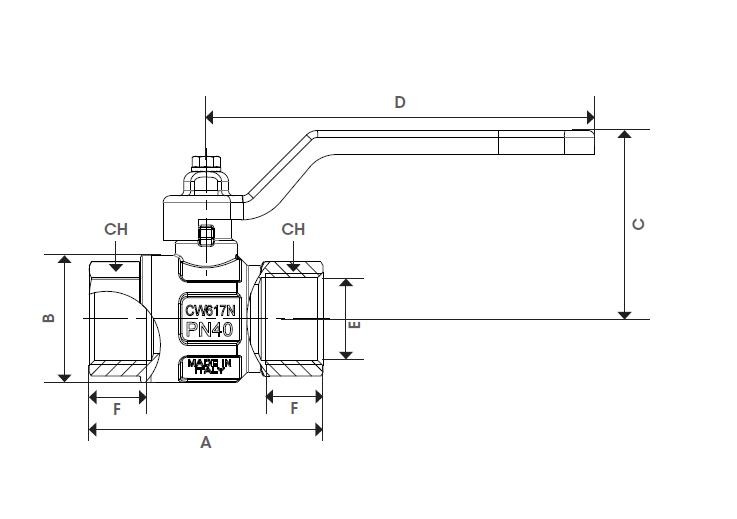

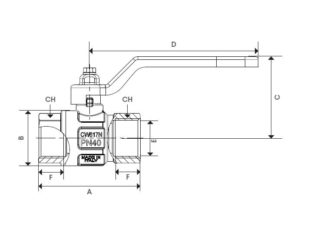

    Lever FF
    Connection dimension: 1/4″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″

    Code Type Connection dimension Threads Control Pmax
    71BV008MF Ball valve ¼” MF bow tie ¼” external/internal thread Bow tie PN 50
    71BV015FF Ball valve ½” FF bow tie ½” external/internal thread Bow tie PN 50
    71BV020FF Ball valve ¾” FF bow tie ¾” external/internal thread Bow tie PN 40
    71BV025FF Ball valve 1″ FF bow tie 1″ external/internal thread Bow tie PN 30
    71BV032FF Ball valve 1 ¼” FF 1 ¼” external/internal thread Lever PN 30
    71BV040FF Ball valve 1 ½” FF 1 ½” external/internal thread Lever PN 30
    71BV050FF Ball valve 2″ FF 2″ external/internal thread Lever PN 25
    Gas ball valves | HUTIRA Gas ball valves | HUTIRA Gas ball valves | HUTIRA +1 Gas ball valves | HUTIRA

    For download

    Technical sheet - Ball valves stáhnout
